Dimensions |
| Unfolded Length |
31.9” |
| Unfolded Width |
24.4” |
| Unfolded Height |
35.4” |
| Unfolded Height-to-Arm Rails |
25.5” |
| Folded Length |
43.9” |
| Folded Width |
24.4” |

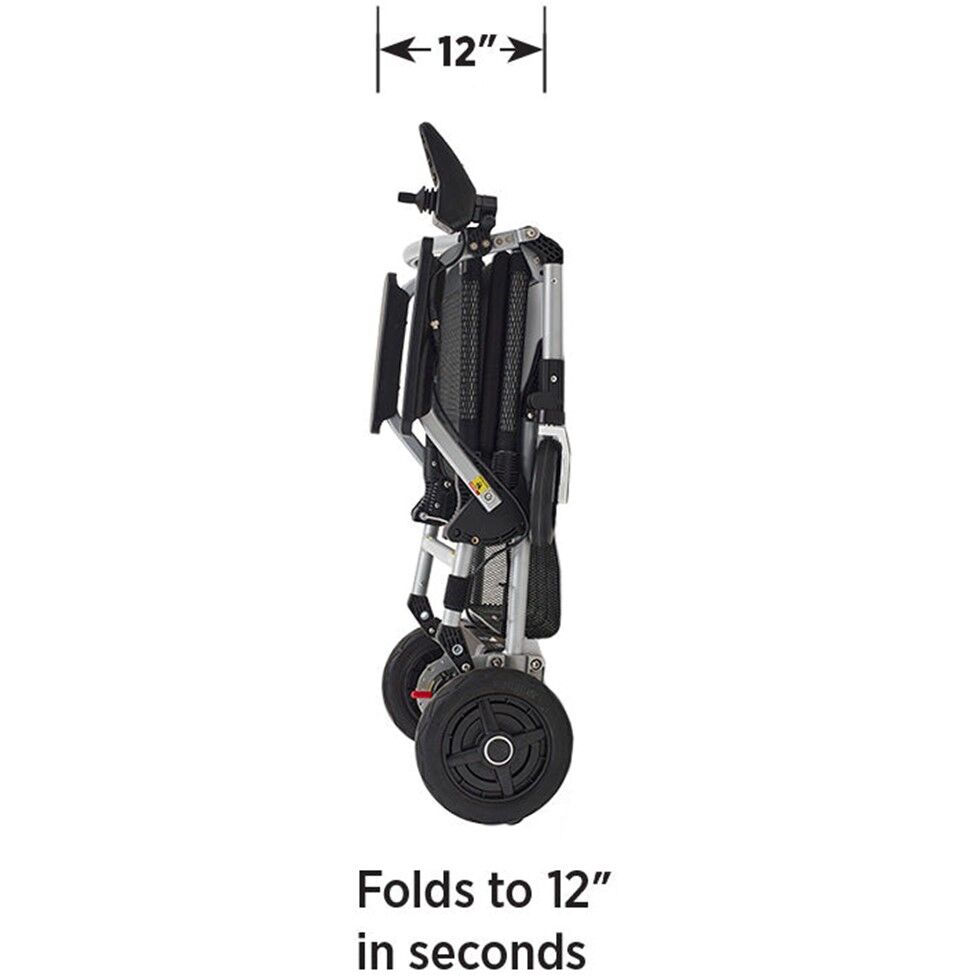

| Folded Height |
12.5” |
| Folded Dimensions |
L 28.3” x H 11.4” x W 26.8” |
| Seat Dimensions |
W 16.9” x H 18.9” x D 13” |
| Seat Width Between Armrests |
19.7” |
| Weight with Battery |
50.5 lbs without basket (46.5 lbs without battery) |
| Package Dimensions |
L 39.8” x W 27.8” x H 12.4” |
| Packaging Weight |
62.8 lbs |
| Weight Capacity |
275 lb max |
| Max Speed |
0 to 3.7 miles |
| Rotation Radius |
35.5″ (902 mm) |
| Max Climbing Angle |
12° (ADA-compliant wheelchair ramps are 5° max.) |
| Charging Time |
4.5 hours or less |
| Battery Range |
Up to 8 miles |
| Frame |
Aircraft Grade Aluminum and Nylon Composite |
| Motor Type |
Dual Brushless; DC 24 volt, 220 watt |
| Battery Type |
24 V 8.76Ah, 240 watt-hours, Lithium-ion 4-lb highest quality cells |
| Battery Weight |
4 lb |
| Steering/Braking System |
Joystick |
| Anti-tip Wheels |
2” |
| Wheel Size |
Front: 7” Rear: 10” |
| Color |
Black, Blue |
